Roll laminator IGM Easyfoil 390B

Brand IGM
Product number RSIGMEF390B
Availability
Product price
Price without VAT 2 840,00
Price incl VAT 3 436,40
Add to basket (pcs):
Add to favorites Add to Compare

Specs

  • Laminating width 370 mm
  • Laminating speed 50-1300 cm/min
  • Laminating speed set up yes
  • Cold lamination no
  • Minimum thickness of laminating foil 22 mic
  • Maximal laminating pouch thickness 250 mic
  • Laminating temperature set up yes
  • Roll film core diameter 25 a 75 mm
  • Heat up time 8 min
  • Reverse function yes
  • Additional laminator cooling no
  • Single-side lamination yes
  • Power 2000 W
  • Voltage 230 V
  • Size (W x H x D) 770mm x 1114mm x 640mm
  • Weight 75 kg
  • Warranty 24 months
  • Brand IGM
  • Number of packages in a carton 1
  • Electric Device Group 4-8-7
  • Recycling costs 20.00

Product description

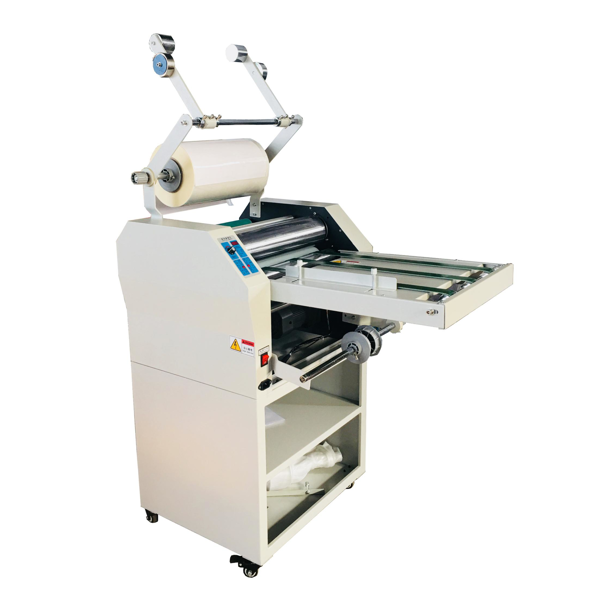

Roll laminator IGM Easyfoil 390B with oil heating of the heating rollers, conveyor belts and automatic unwinder for the application of toner effect foils (sleeking).


The Easyfoil professional laminator is designed for sheet lamination, single or double side and for sleeking.  Roll laminator IGM Easyfoil 390B ensure stable laminating process thanks to oil heated rollers, conveyor belts and automatic unwinder for the sleeking application.



The Easyfoil 390B has a large chrome heating rollers with the Smart Trax heating system.


Smart Trax is an intelligent electric heating system assisted by oil located in the heating cylinder. This compensates for temperature peaks caused by switching on the electric heaters and at the same time prevents the rollers from cooling down quickly during operation.

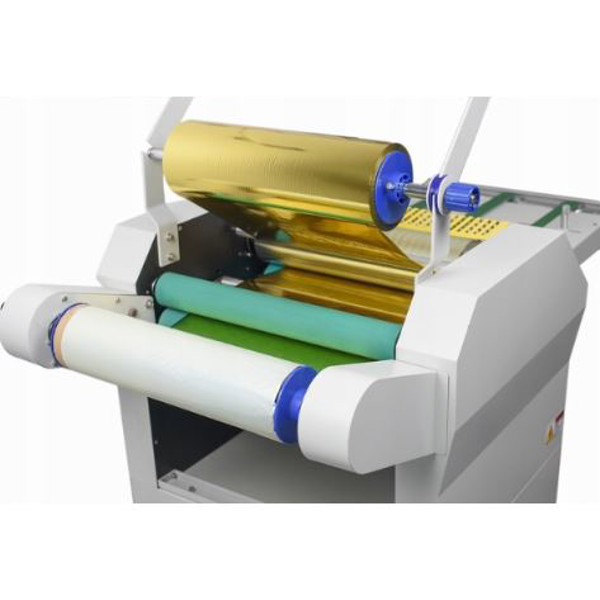

Laminator is equipped with an automatic unwinder that enables sleeking application.

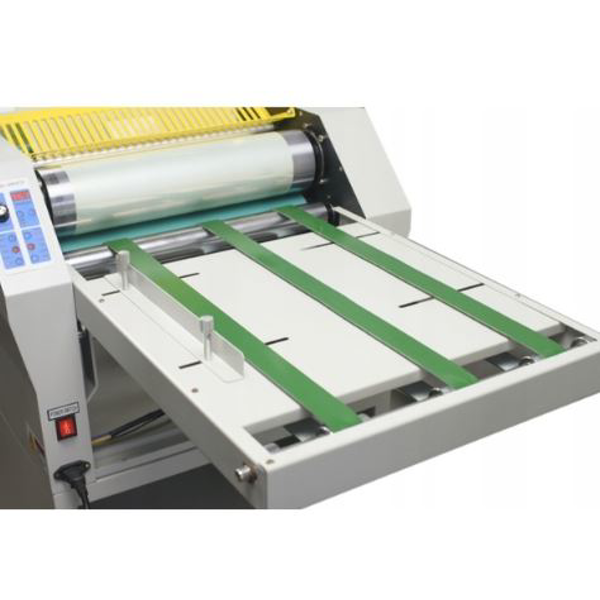

For easy and accurate loading of sheets, the machine is equipped with a long feeding table with conveyor belts.


Key technical features:


Smart Trax intelligent heating system - stable, fast heating

Large chrome heating roller and silicone rear pressure rollers

Manual loading - extended table with conveyor belts

Automatic unwinder

Adjustable de-curling bar for single-sided lamination

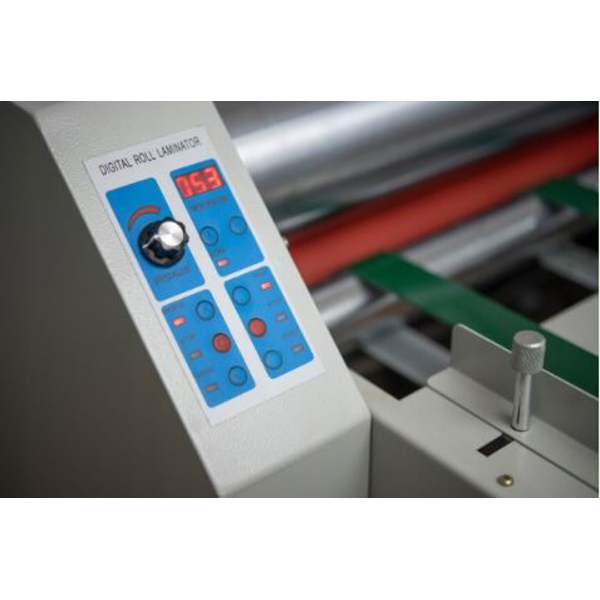

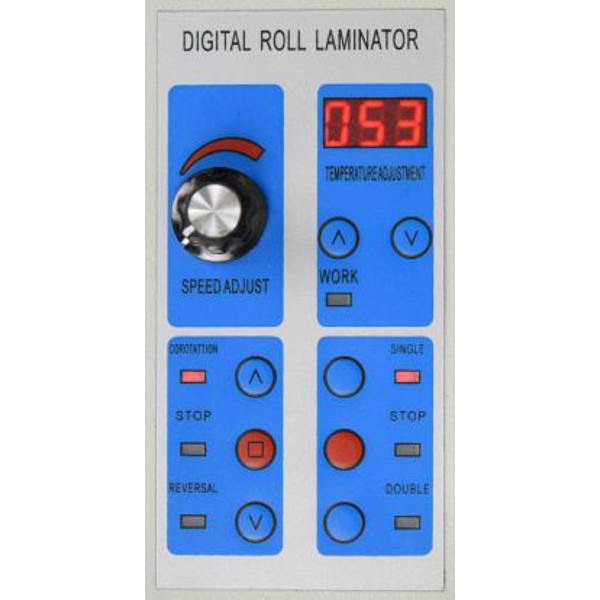

Digital control panel

One-sided and double-sided lamination

Regulation of lamination speed and temperature

Longitudinal perforation of the laminating film

Reverse run

Compact design and small dimensions including a mobile base

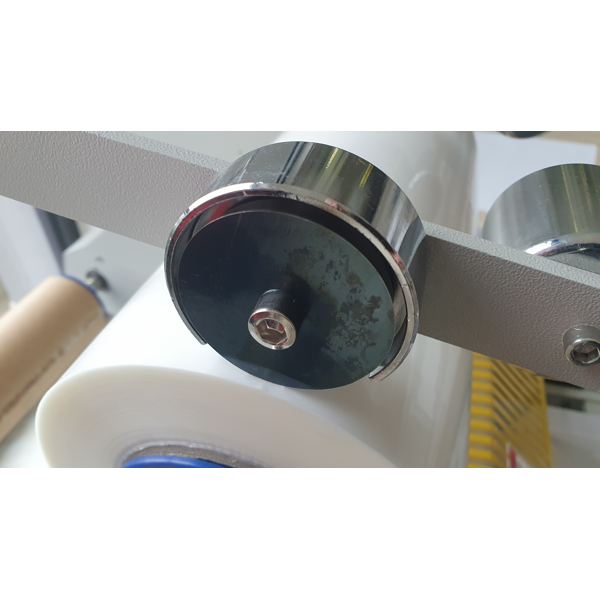

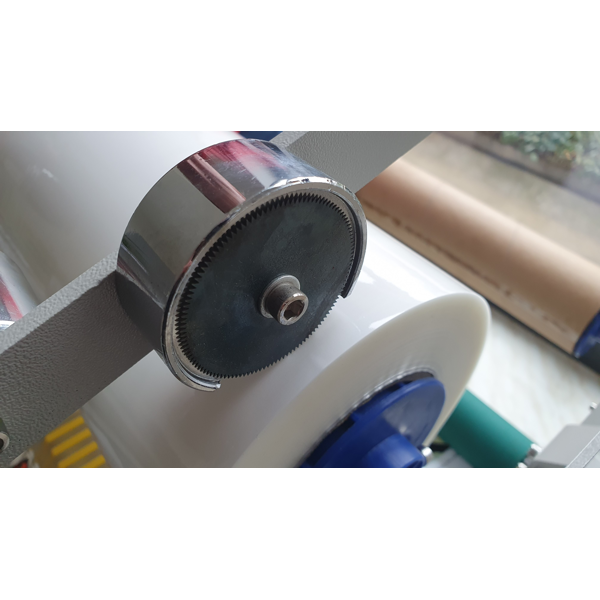

Capacity of the upper laminating film holder - roll length up to 3000 m

Designed for Roll film on core 1" (25mm) or 3" (75 mm)
