Guillotine EBA 4305

Specs

Device type guillotine
Maximum cutting length 430 mm
Maximum cutting height 40 mm
Maximal format A3
Table depth 435 mm
Narrow cut 34 mm
Blade drive type manuall
Paper press type manuall press
Backgauge manuall
Safety cover transparent plexi cover
Light marking of the cutting line no
Maximum cutting capacity 400 sheets of 70 g/m² paper
Size (W x H x D) 880mm x 400mm x 880mm
Weight 44.6 kg
EAN Code 4018351003379
Item Number 43060000
Warranty 24 months
Brand EBA
Number of packages in a carton 1
Custom Tariff 84411070

Product description

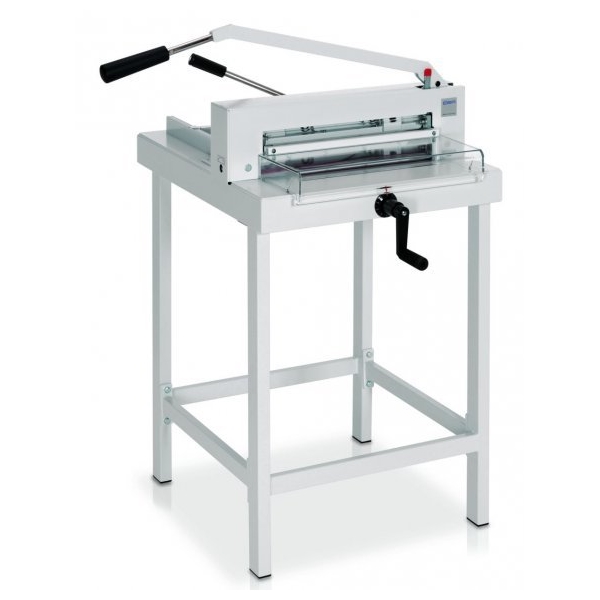

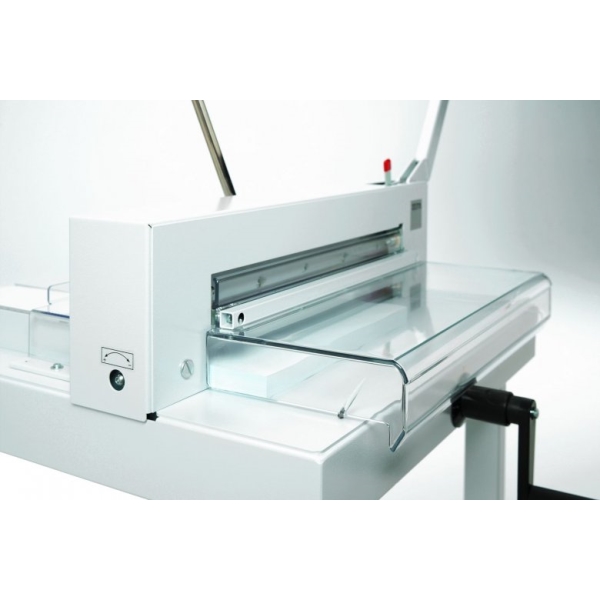

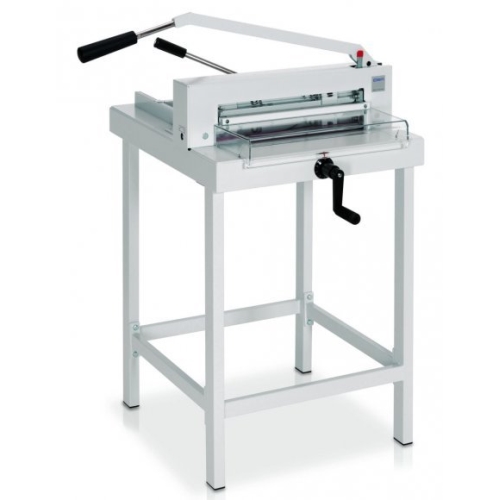

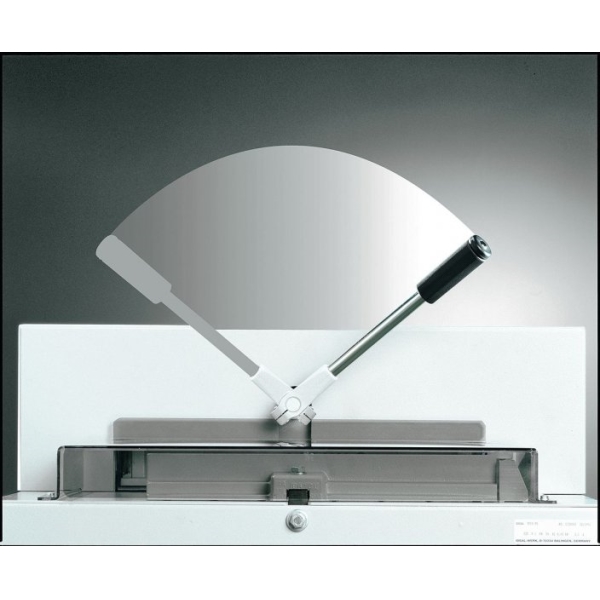

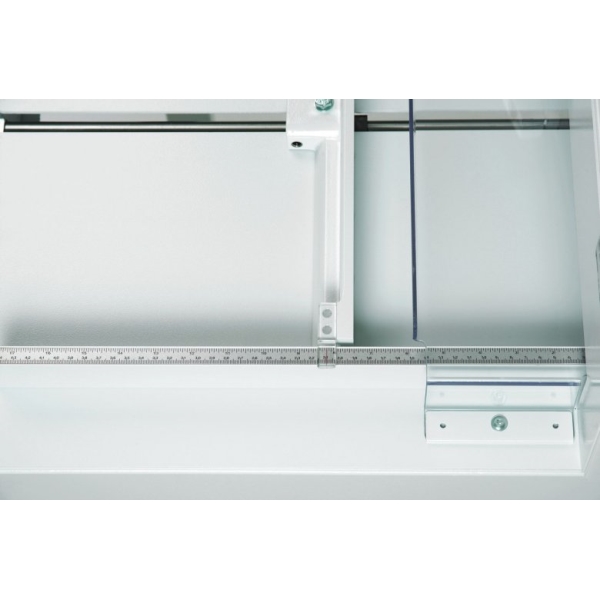

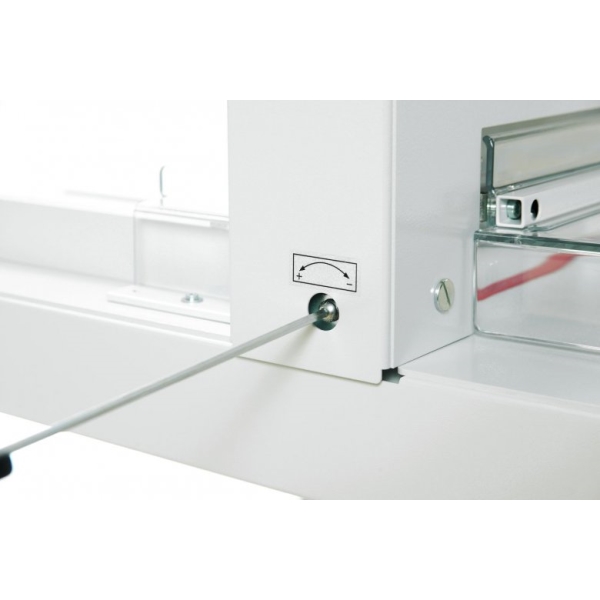

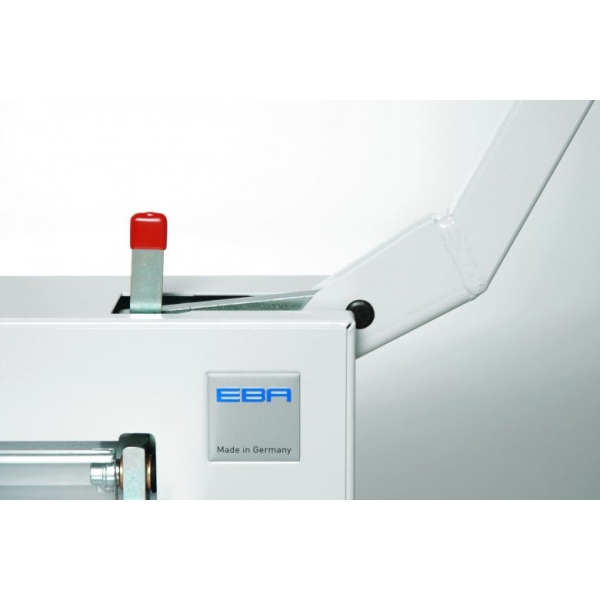

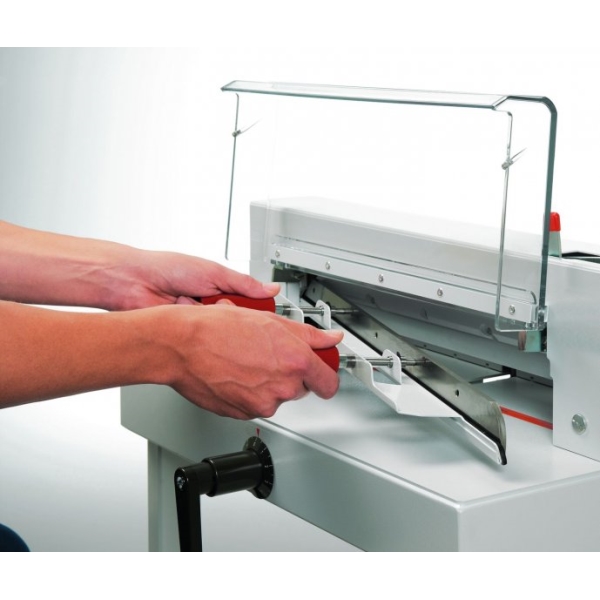

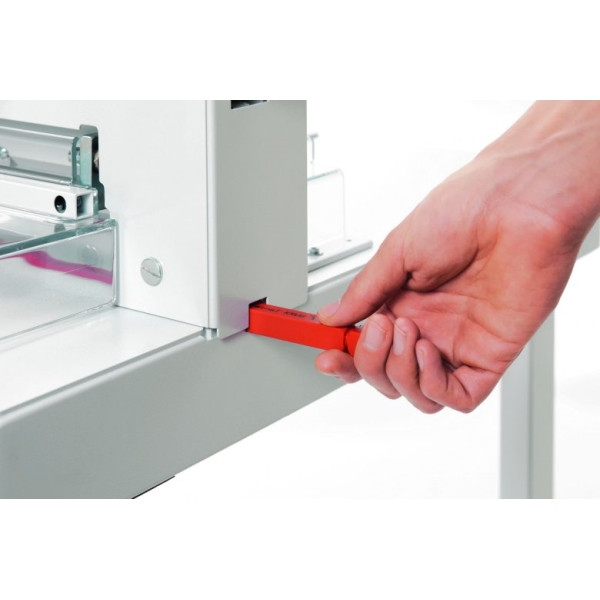

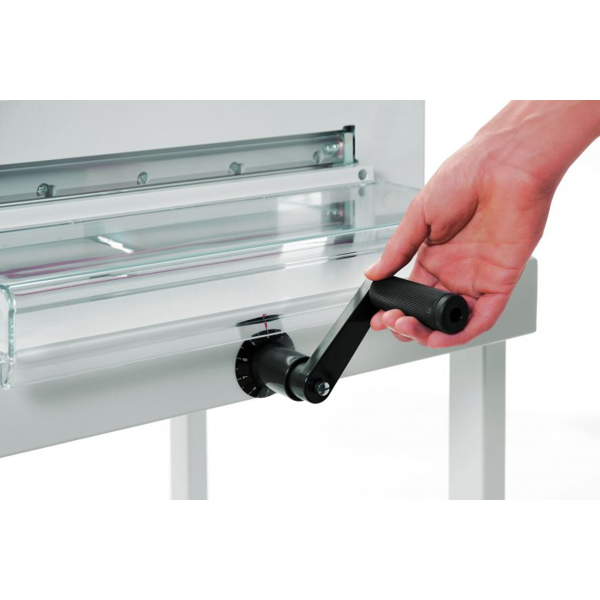

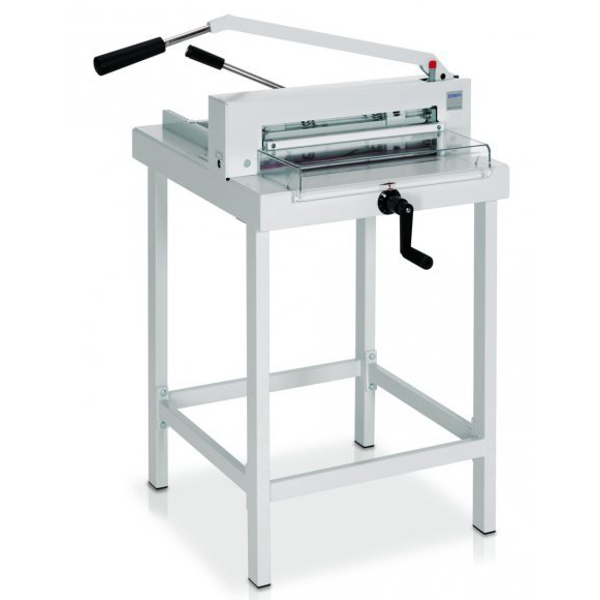

Manual office-guillotine. SCS - the Safety Cutting System made by EBA provides numerous safety features: hinged, transparent safety guard on the front table (locks automatically while cutting); transparent safety cover on the rear table; safety catch (locks blade lever in upper position); safe and convenient blade change from the front without removing machine covers; blade changing device with covered cutting edge; blade depth adjustment from the outside of the machine; cutting stick can be turned or replaced easily from the outside of the machine. Cuts up to 500 sheets of paper (70 g/m2) or bound brochures up to 40 mm. Blade made of German high quality steel. Solid steel blade carrier. Adjustable blade guides made of hardened steel. Patented fast flick action clamp. Side lay with measuring scale (mm / inches). Spindle guided backgauge with hand crank. Fine adjustment of measurement with calibrated scale on the backgauge hand crank. Solid allmetal construction. Designed as table top machine, a stand is available as an option (at an extra cost). Dimensions (WxDxH): 880 x 880 x 400 mm (height with stand 1150 mm). Weight: 44 kg; (54 kg with stand)
