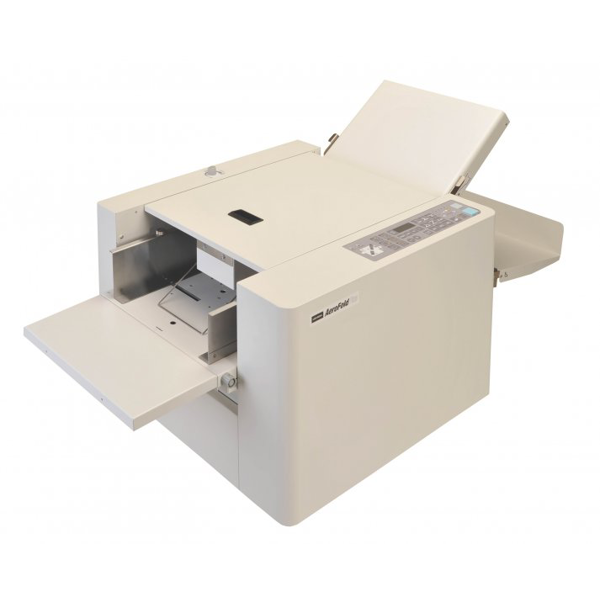

Uchida AeroFold Plus equiped with belt suction feeding system can feed and fold up to SRA3 size of various types of papers, such as offset, coated, art, digital printed papers and more.
Paper weight up to 160 gsm. (up to 230 gsm for single fold)
Paper size up to 330(W)x488(L) mm.
Folding speed up to 18,000 sheets/hour. (single fold)
Memory function for fine folding position adjustments & odd size papers

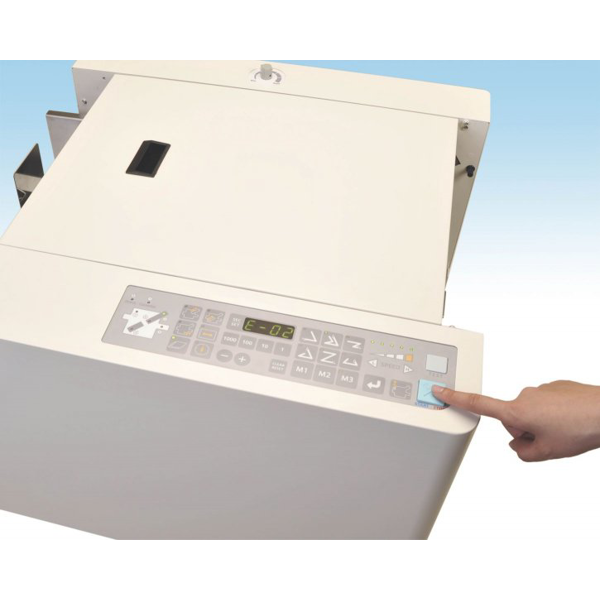

Error detection & indication makes it easy to diagnose.
Double feed detection alarms when it feeds double sheets.
Technical parameters:
Maximum Paper Size 330mm (W) x 488mm (L)
Minimum Paper Size 120mm (W) x 210mm (L)
Maximum Paper Weight 160g/m2 (Single fold : 230g/m2)
Minimum Paper Weight 60 g/m2
Maximum Stacking Capacity 800 sheets (80g/m2)

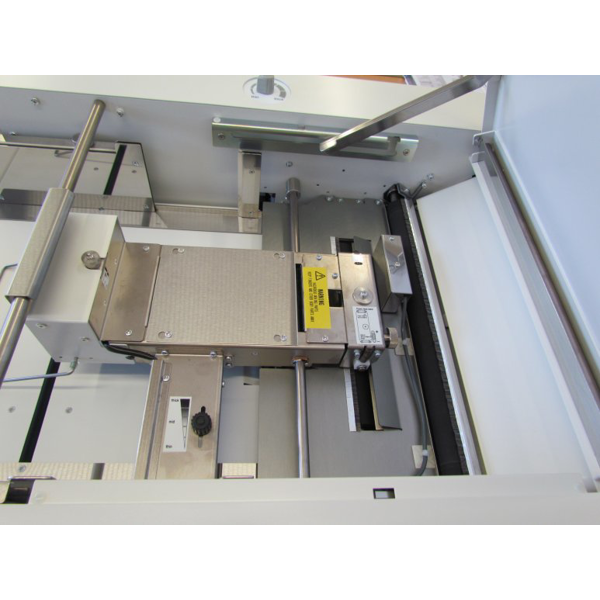

Paper Feeding system Upper Belt Feeding system, Air Blowing System
Maximum Folding Speed aprox 18,000/hr
Speed Adjustment Adjustable (in 5 steps)

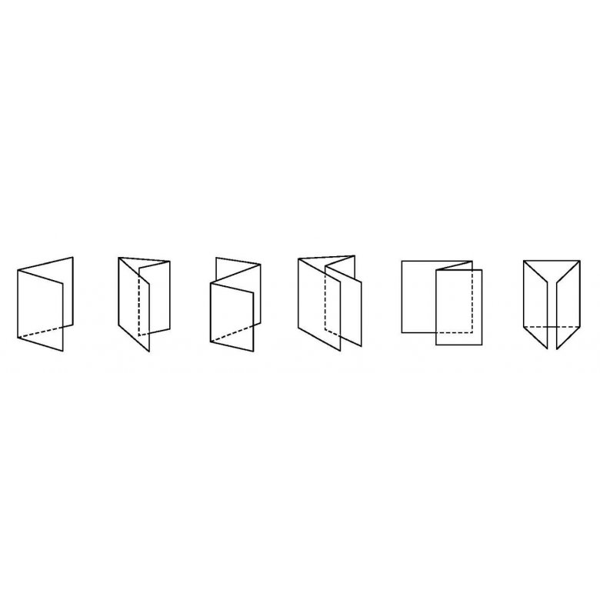

Folding pattern setting Automatic
Folding Position Setting Automatic
Feed Table ElevationAutomatic
Counter 4 digits, addition/subtraction digital counter
Memory Function 30 kinds
Memory function of fold data for outer norm paper 3 kinds
Automatic Paper Size detectionA3, A4, A5,

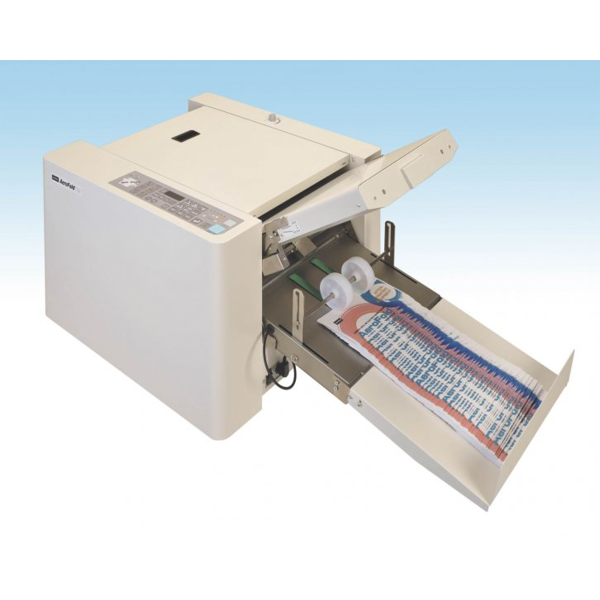

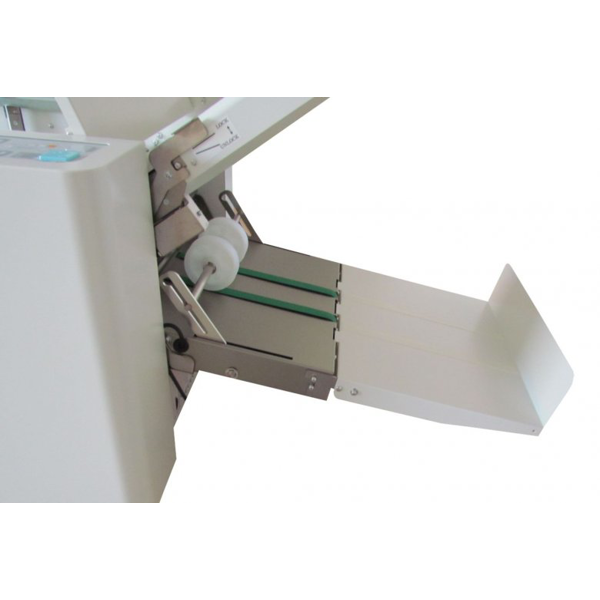

Paper Ejection System Conveyer Belt (Automatic speed setting), Length of election table: 340mm
Double Feed Detection, Paper Jam Detection, Empty Feed Detection, Cover Open Detection
Option Perforator unit/Scoring unit/Delivery tray extension/Folding table for single folding 630mm length paper
Slant adjustment Equipped
Batch function Equipped
Dimensions 1,170 W x 587 L x 650 H mm (in operation)
Voltage 240V/50Hz
Weight 68 kgs
Made in Japan
