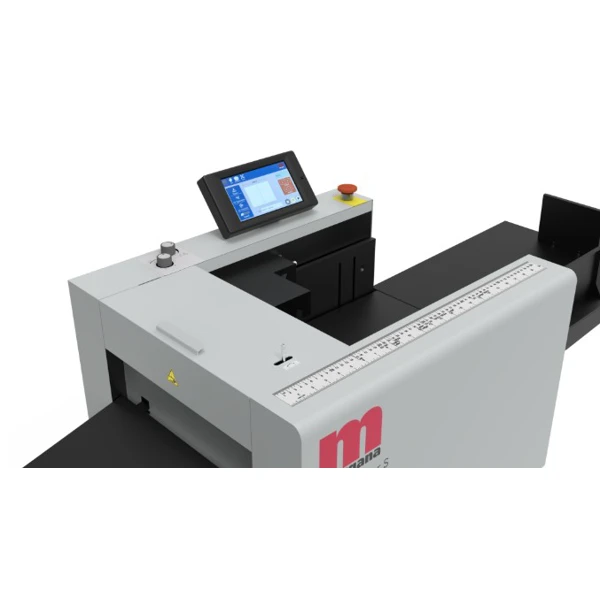

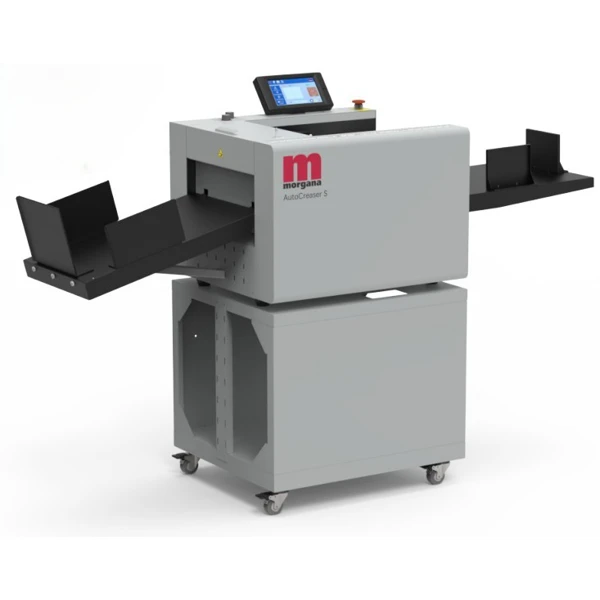

Morgana AutoCreaser S

Specifications

• Machine function Creasing, optional cross and rotate perforation
• Working width 330 mm
• Maximum paper input size 330 x 700 (up to 330 x 900 when used feed table extension) mm
• Minimum paper input size 99 x 150 mm
• Setting the positions of operations electrically from the control panel
• Maximum paper weight when creasing 250 gsm
• Maximum paper weight when perforating 350 gsm
• Tool drive electric
• Paper feeding system air belt with upper feeding
• Maximum input capacity 100 mm
• Flexible width of crease 0,75 mm mm
• Maximum number of crease per sheet 32
• Minimum distance between creases 2 mm
• Speed of feeding paper 5000 sheets size A4 / hour
• Voltage 230 V
• Dimensions (W x H x D) 560mm x 1650mm x 590mm
• Weight 83 kg
• Art. Num. 18306000
• Warranty period 12 months
• Brand MORGANA
• Unit 1 ks
• Units per carton 1
• Electrical equipment category 4-13-3
• Recycling fee 166.00
