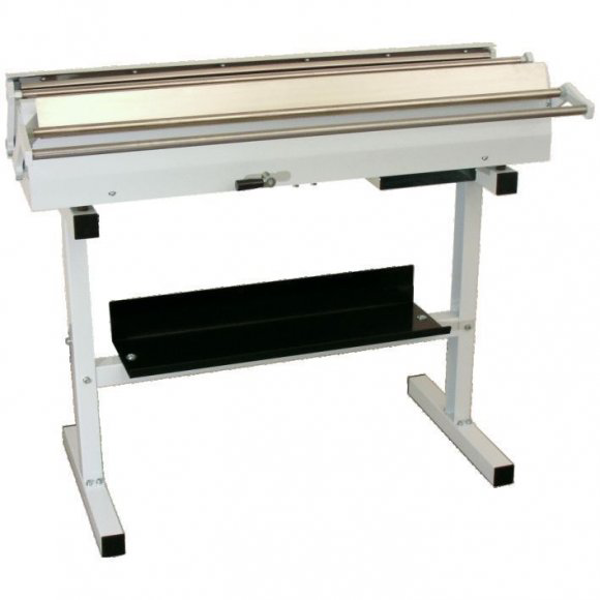

The LD-901 map folding machine is very easy to use, just introduce the map in the folder, put the lever back and forward a few times and the map is folded.
The clutch release lever is located at the front side, the folded map can be taken off without to step aside.
With the special folding pocket the cross folding is achieved very quickly.
The LD-901 comes with a wall sheet holder in order to carry the documents to be folded and a delivery tray for the folded maps, no need for a table.
TECHNICAL SPECIFICATIONS
Max. folding (put through) width : 109cm (A0 short edge)
Max. paper length : 2.5 to 3 m according paper thickness
Papers range : matt, satin and glossy
Paper thickness : from 65 to 155 gsm
Speed : 1 fold per sec. (depends on the user)
Distance between foldings :21 cm
Cross folding : 29,7 cm
Stand: yes (comes standard with the machine)
Wall sheet holder : yes (comes standard with the machine)
Delivery tray for folded maps : yes (comes standard with the machine)
Size in working position (LxDxH) : 117 x 57 x 102 cm
Size in box (LxDxH) : 125.5 x 56.5 x 47.5 cm (on mini pallet)
Net / gross weight : 77 Kg / 83 Kg
