Brand EBA
Product number REPEBACI4855
Availability
Product price

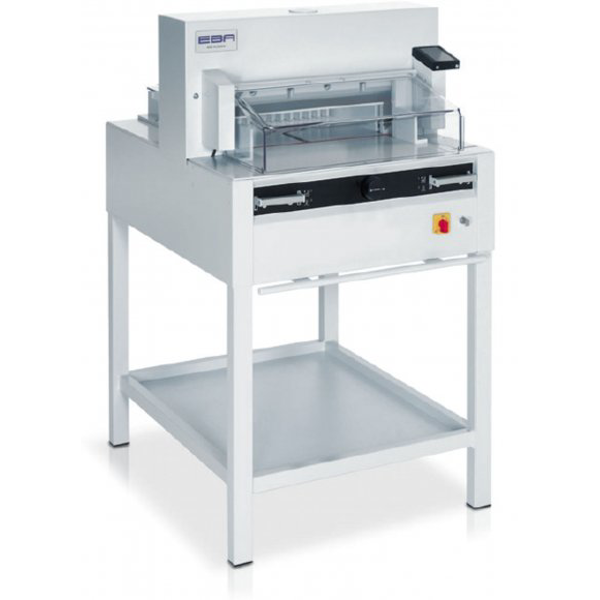

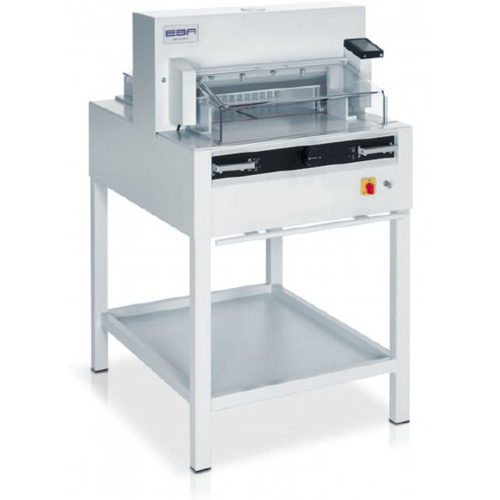

Professional guillotine with EASY-CUT, automatic clamp, 47 cm programmable power backgauge with touch pad and safety guards (front and rear).

Specs

  • Type of cutting stacker
  • Maximum cutting length 475 mm
  • Maximum cutting height 80 mm
  • Maximal format SRA3
  • Table depth 450 mm
  • Narrow cut 35 mm
  • Blade drive type electromechanically
  • Paper press type automatic
  • Backgauge electrically from the control panel
  • Safety cover transparent plexi cover
  • Optical marking of the cutting line yes
  • Air supply table no
  • Power 1100 W
  • Voltage 230 V
  • Size (W x H x D) 726mm x 1296mm x 1053mm
  • Weight 228 kg
  • EAN Code 4018351004857
  • Item Number 48563111
  • Warranty 24 months
  • Brand EBA

Product description

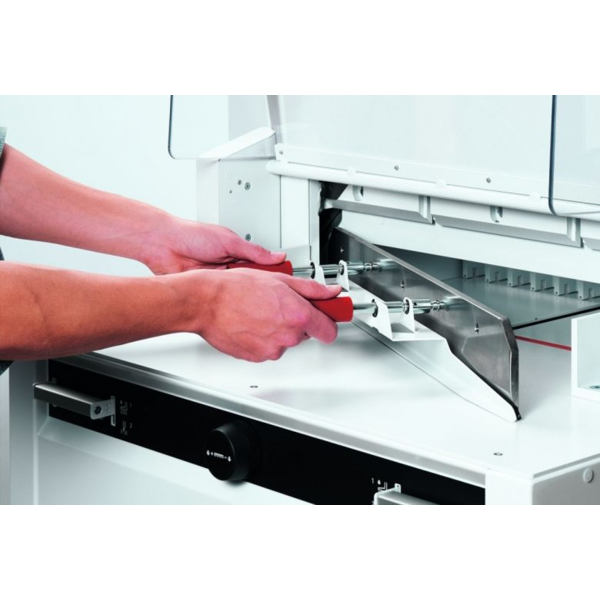

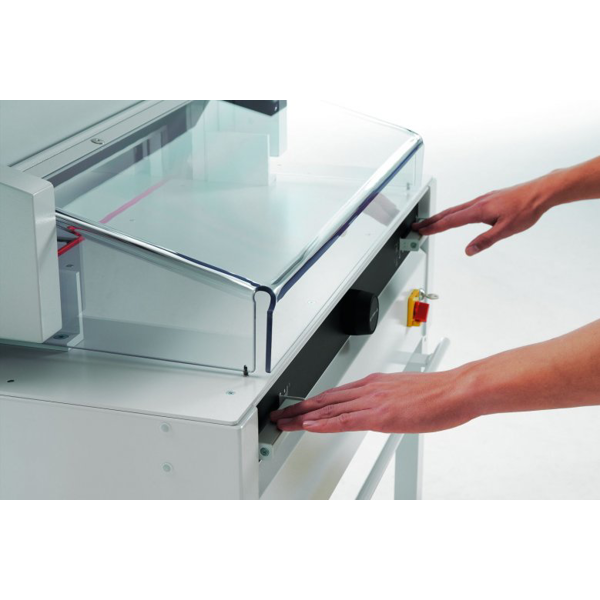

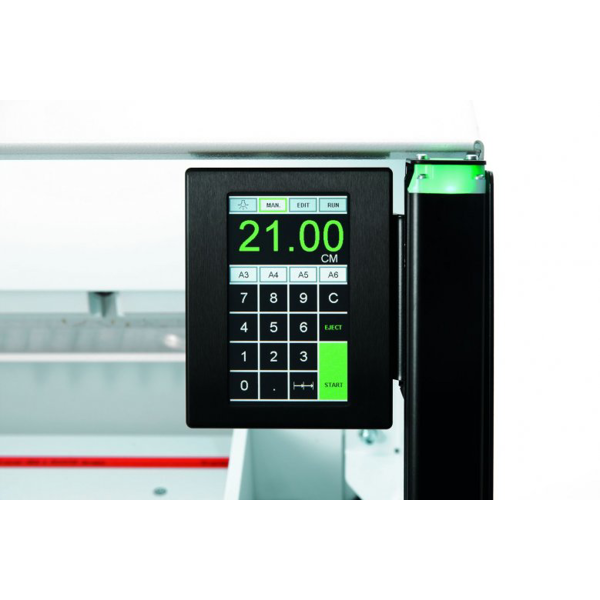

Professional guillotine with EASY-CUT, automatic clamp, 47 cm programmable power backgauge with touch pad and safety guards (front and rear). Equipped with the new, patented EASY-CUT blade activating bars for convenient and safe cutting. The ergonomic working height of 94 cm guarantees effortless, fatigue-free operation. Comprehensive SCS safety package: hinged, electronically controlled safety guard on the front table; safety cover on the rear table; main switch and safety lock with key; electronically controlled true two-hand operation; 24 volt controls (low voltage); patented safety drive; automatic blade and clamp return from every position; disc brake for instant blade stop; blade changing device with covered cutting edge; blade depth adjustment from the outside of the machine; easy blade and cutting stick change from the front of the machine without removing covers. Electric backgauge drive with touch pad for easy setting, multilingual operator guidance and digital display. Measurement readout in cm or inches (display accurate to 1/10 mm or 1/100 inch). 99 programs with 99 steps in each program (up to 15 repeat cuts can be integrated into a program as one single program step). Program runs automatically. 10-button key pad for presetting of measurement. Pre-programmed measurements for A3 to A6 standard paper sizes. Memory key for repeat cuts. Automatic SET function for reference measurement via start button. Programmable EJECT function - for pushing out the paper. Self-diagnostic system with error indication on display. Electronic hand wheel for manual backgauge positioning with infinitely variable speed control (from very slow to very fast). Electro-mechanical blade and clamp drive. Blade made of German high quality steel. Solid steel blade carrier and adjustable blade guides. Adjustable backgauge with narrow separations and plastic gliders. Optical cutting line with bright and durable LEDs. Two side lays each on front and rear tables. Solid all-metal construction. Complete with stand, storage shelf, practical tool holder and stacking angle. Optional set of side tables available at an extra cost. Quality "Made in Germany". Power: 230 V / 50 Hz / 1~ (other voltages available). Capacity: 1.1 kW blade drive, 0.32 kW clamp drive, 0.1 kW backgauge drive. Dimensions: 1296 x 762 x 1053 mm (H x W x D), width with side tables 1349 mm. Weight: 228 kg without side tables, 237 kg with side tables.
