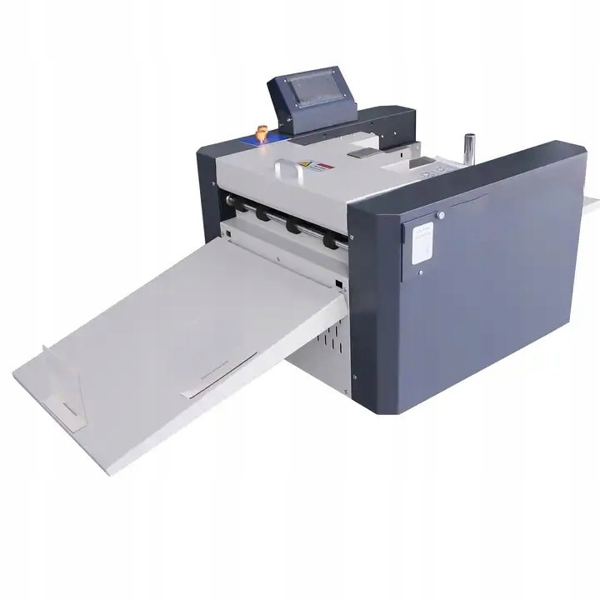

Automatic creasing and perforating machine IGM DCP 330 AutoSpeed

Specifications

• Machine function creasing&perforating
• Working width 330 mm
• Maximum paper input size 330 x 665 mm
• Minimum paper input size 210 x 297 mm
• Maximum number of crease per sheet 32
• Maximum paper weight when perforating 300 gsm
• Maximum paper weight when creasing 200 gsm

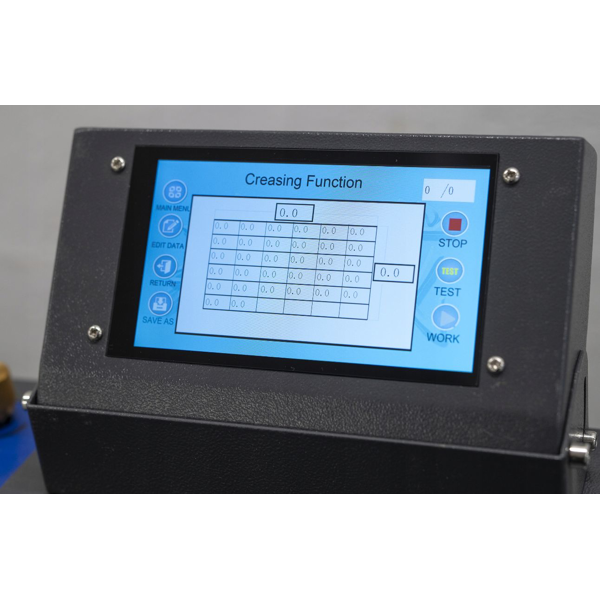

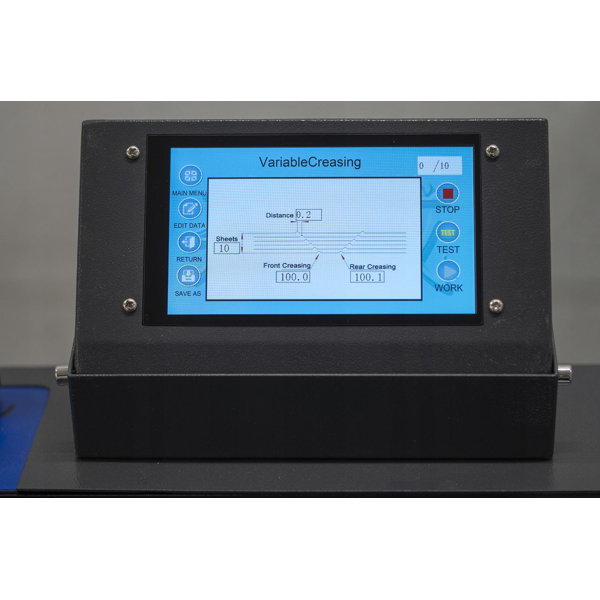

• Setting the positions of operations electrically from the control panel
• Maximum input capacity 110 mm
• Paper feeding system air belt with upper feeding
• Minimum distance between creases 1 mm
• Speed of feeding paper 3800 sheets size A4 / hour
• Flexible width of crease 0,7 mm
• Tool drive electric
• Voltage 220 V
• Power consumption 195 W
• Dimensions (W x H x D) 1380mm x 480mm x 570mm
• Weight 55 kg
• EAN code x
• Art. Num. SM-372Y
• Warranty period 24 months
• Brand IGM
• Unit 1 ks
• Units per carton 1
• Electrical equipment category 4-8-7
• Recycling fee 20.00
